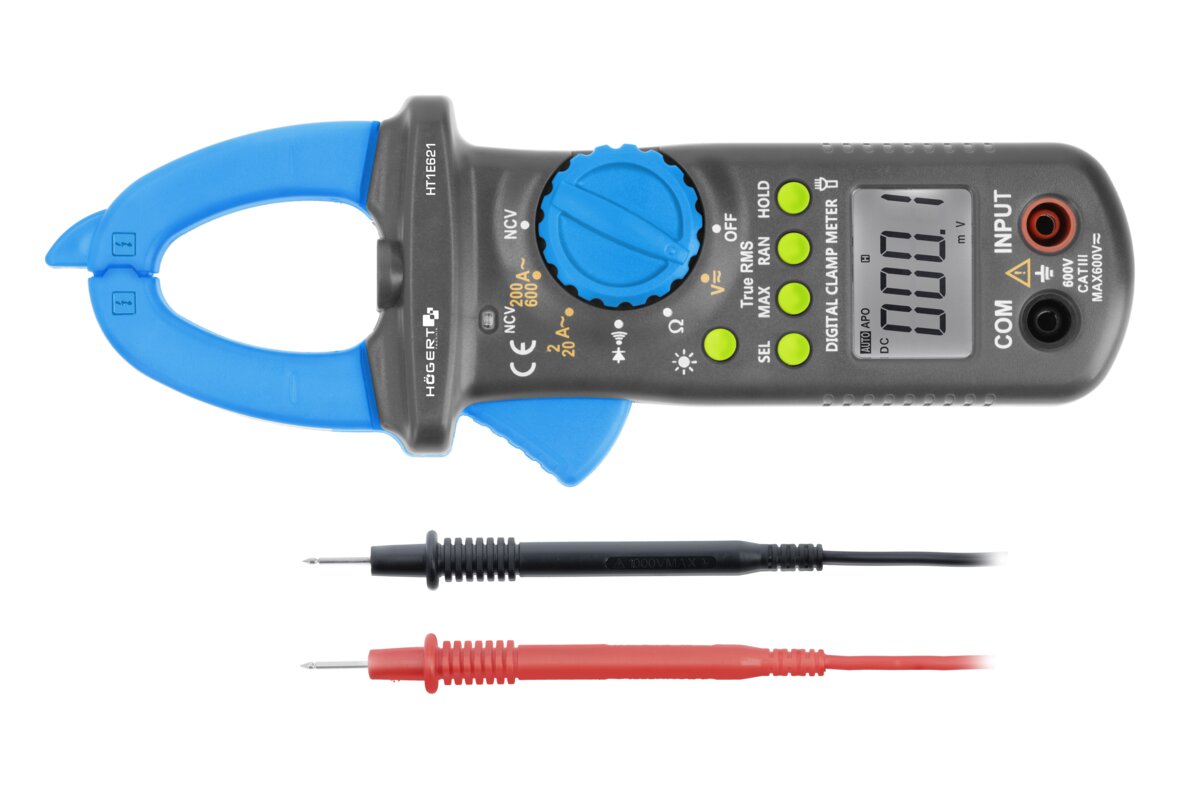

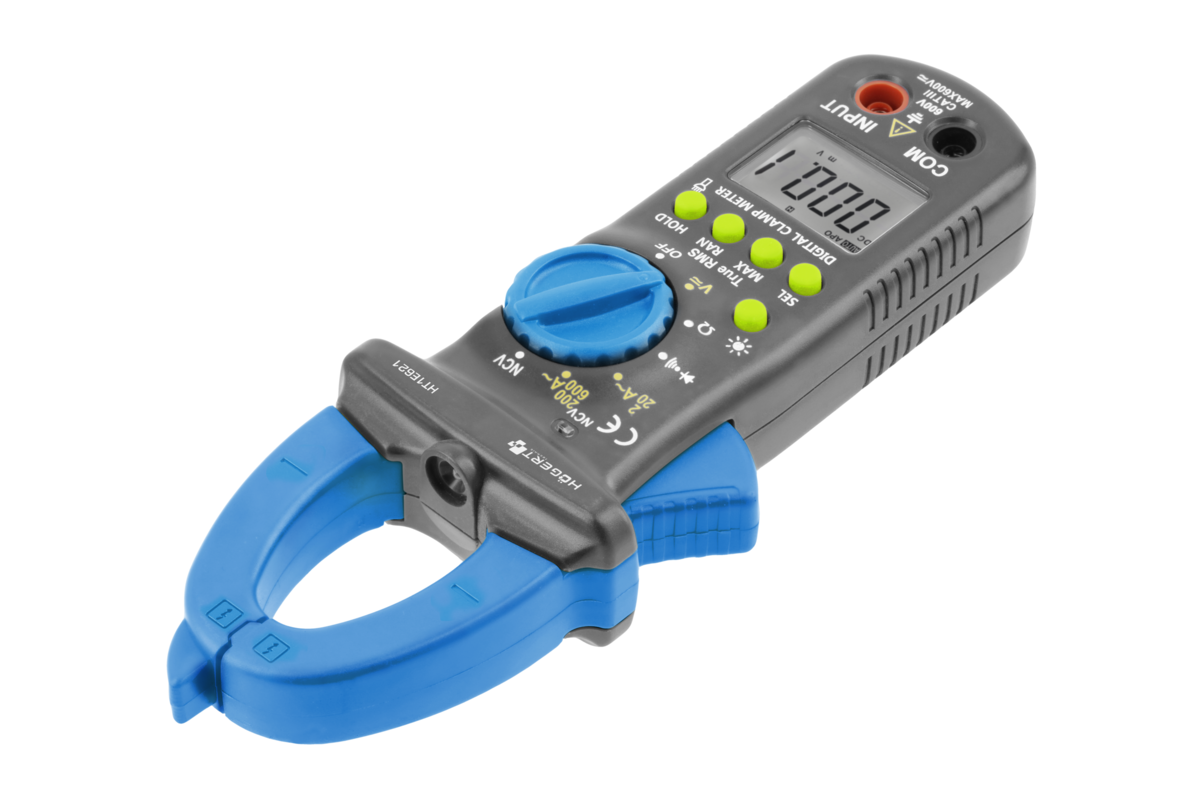

Clamp universal multimeter

Index: HT1E621
The meter is equipped with clamps to measure AC current in a single conductor by induction. Used to diagnose and detect faulty electrical components. Used in the automotive, electrical and installation industries.

Do you have any questions? Email us

informacja@hoegert.com

Description

Product description

The meter is equipped with clamps to measure AC current in a single conductor by induction. Used to diagnose and detect faulty electrical components. Used in the automotive, electrical and installation industries.

Characteristic

  • TRUE RMS measures alternating current and voltage – precise RMS value for both sinusoidal and deformed waveforms;
  • NCV enables non-contact detection of live current in cables;
  • DATA HOLD keeps the currently measured value on the display;
  • SELECT – function selection;
  • RANGE – switches between auto and manual selection of the operating range;
  • MIN / MAX keeps the minimum / maximum measurement readings on the display;
  • multimeter measures DC and AC voltage up to 600 V, AC current up to 600 A and resistance up to 60 MΩ, performs diode and continuity tests;
  • large LCD screen with backlight enables to display and read 5999 counts even in the dark;
  • built-in fl ashlight enables work at night and in the dark;
  • comfortable, ergonomic, compact shape allows comfortable, single-hand operation;
  • 3×1,5 V AAA battery power supply, longer battery life thanks to Auto Power Off;
  • max. diameter of the measured cable is 20 mm;

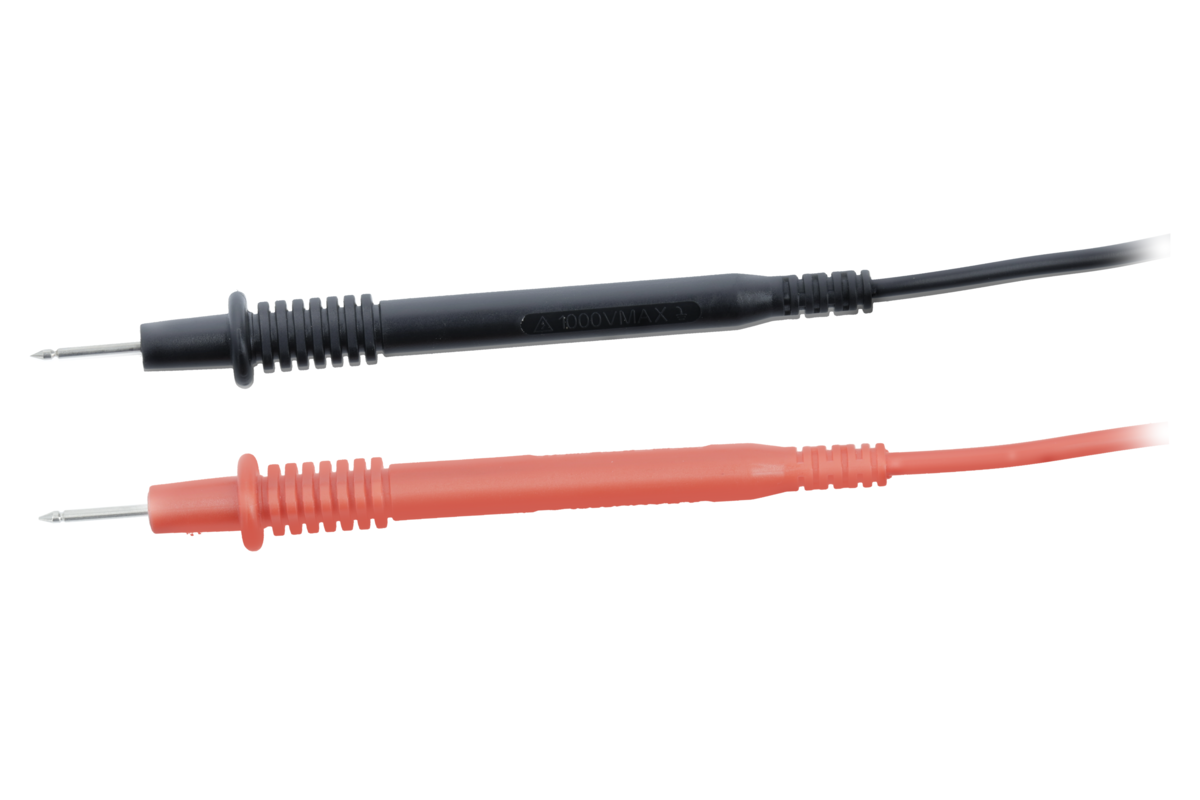

  • test leads included.



Video

Technical data

Additional information RJ11
RJ45
CABLE INDICATION
CONTINUITY TEST
SEQUENCE TEST
Functions Torch
Quantity in package 1
R [Ω] 60m
RANGE AUTO RANGE
U AC [V] 45
