Description
Product description
The universal 10 in 1 tool combining many functions enables the execution of various tasks conveniently and quickly. The tool lets you save space that would be needed for several different tools and reduce the weight of the tool bag.

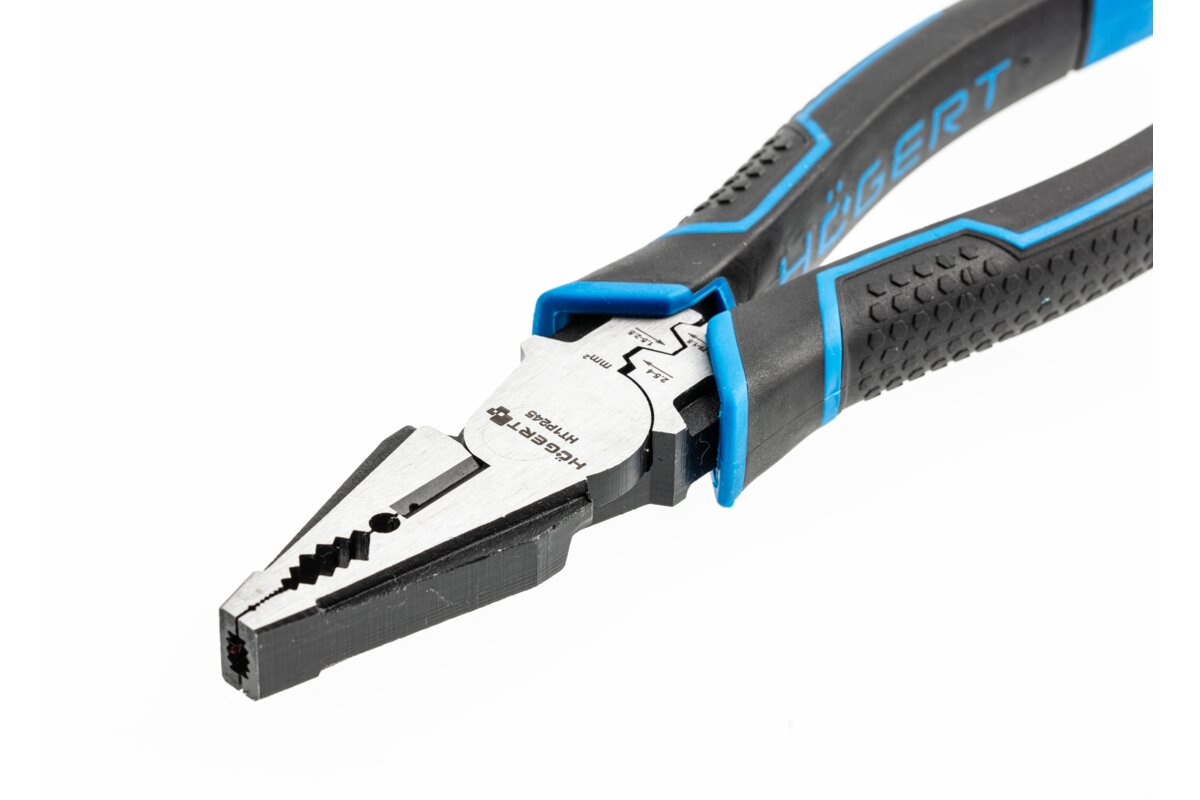

The precisely milled tunnel in the front of the pliers allows you to grip small bolts and screw heads, including round ones. In addition, it makes it easier to firmly grip rods, nails and screws in the axis of the pliers, e.g. when grinding tips.
The wide tip of the pliers enables firm clamping of soft materials, holding objects of up to 45 mm in diameter, squeezing, tightening, pulling and gripping.
Thanks to the asymmetric grooves, the round piece holder enables a firmer grip of an object or a nut.
The hard guillotine allows you to cut steel wire.
The press tool ensures permanent processing of 0.75-1.5, 1.5-2.5 and 2.5-4.0 mm² electrical cable end-sleeves.
Insulation stripping hole speeds up electrical works.
The sleeve press allows you to restore the round and straight bar shape.
High-quality, evenly hardened chromium-vanadium steel enables intensive use of the pliers for heavy-duty work requiring the application of high pressure.
The advanced induction heat treatment process provides the tool with high hardness that prevents the blades from becoming blunt. The well-thought-out geometry makes cutting easier.
Finely ground, hard working surfaces and teeth enable precise work.
The ergonomic handle linings, made of damage-resistant and soft TPU material, provide great comfort during long work.
Characteristic
insulation stripping range – 1 / 1.3 / 1.6 / 2 / 2.6 mm;
electrical terminal clamping range – 0.75-1.5 / 1.5-2.5 / 2.5-4.0 mm²;
jaw hardness – 43-48 HRC;
blade hardness – 58-63 HRC;
pliers material – CRV 60 steel;
handle lining material – TPE;
length – 210 mm;
width – 57 mm;
functions
1. holding,
2. squeezing,
3. shearing,
4. gripping,
5. bending,
6. terminal connection,
7. round screw head bolting,
8. holding round and elongated objects in the axis of the pliers,
9. insulation stripping hole,
10. sleeve press.
Technical data
| Grip type | TPE |
| Material | CrV |
| Warranty | 25-years |
